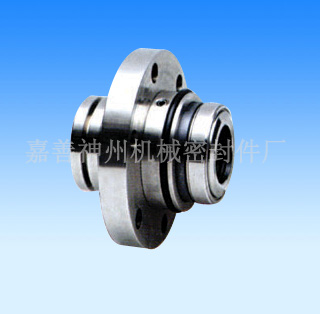

Products Name:Type mechanical seal SZHR

Products Details:Single end container type / balance / arbitrary direction / in accordance with APO610.API680 standard; SZHR series special purpose seal, it applies in the presence of particles. But no external flushing and cycling conditions, mainly used in power plant, fuel gas desulfurization purification device in the series is also used in papermaking industry and slurry pump series.

Operating parameters:
Specifications:20-180 mm；Stress:≤1.6Mpa；(Double layer wave plate≤5.0Mpa)；Temperature:-20℃～160℃；Linear velocity:≤10m/s；Axial thrust:±0.5mm

Material combination:
Sealing face: silicon carbide, tungsten carbide, auxiliary rib seal: NBR, fluorine rubber, ethylene propylene rubber PTFE; metal components: stainless steel, alloy steel
